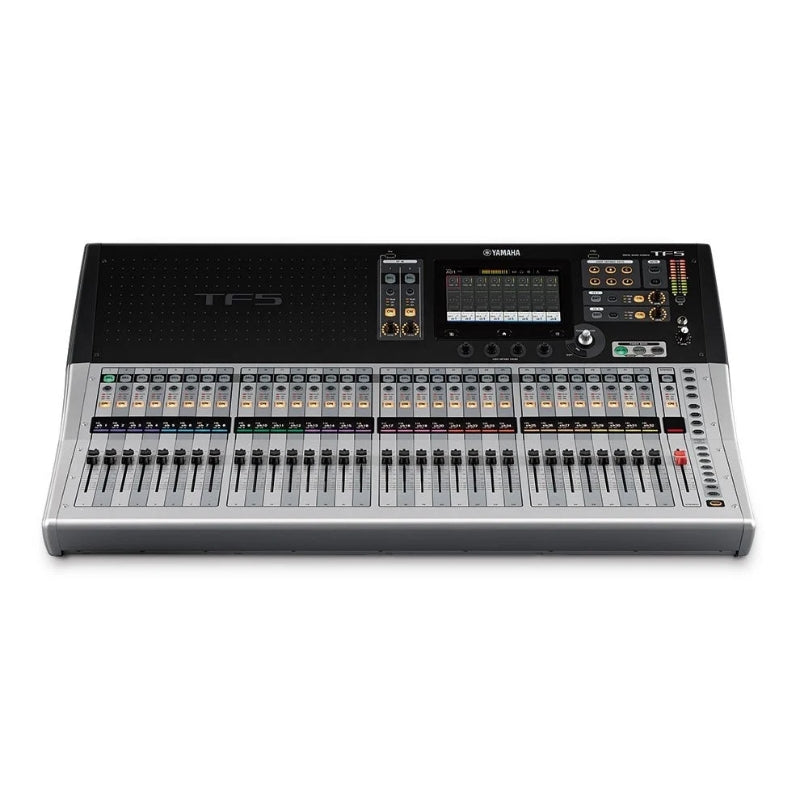

Yamaha TF5 32-Channel Digital Mixer with 3 MSI

Want another discount? Contact us.
📞Wholesalers - 56 13 53 83 01

✉️ Write to us - sonoritmo.cotizaciones@hotmail.com

✆ WhatsApp - 55 45 39 47 42

📱 Facebook - Sonoritmo

This mixer model has become the best-selling mixer worldwide since its release in 2015, confirming its excellent audio quality and ease of use for all audio engineers.

We present the main features of this new mixer:

• 32+1 Dimmer Configuration Schematic (Master)
• Input Channels Mixing Capacity 48 (40 mono + 2 stereo + 2 return) Aux Buses 20 (8 mono + 6 stereo)
• Stereo Buses 1 Sub Buses 1 Input Channel Functions 8 DCA I/O Groups Inputs 32 Mic/Line Inputs (XLR/TRS Combo) + 2 Stereo Line (RCA) 16 Outputs (XLR) Expansion Slots 1 Onboard DSP + 8 Processors
• Effects 10 GEQ General Specifications TF5 Internal Sampling Rate 48 kHz Signal Delay Less than 2.6 ms, Input to OMNI OUT, fs = 48 kHz Fader 100 mm motorized, Resolution = 10-bit, 10 dB to -138 dB, -∞ dB all faders
• Total Harmonic Distortion Less than 0.05% at 20Hz-20kHz @ +4dBu into 600, INPUT to OMNI OUT, Input Gain = Min. (Measured with a -18dB/octave filter at 80kHz)
• Frequency response 0.5, -1.5 dB 20 Hz-20 kHz, refers to +4 dBu output at 1 kHz, INPUT to OMNI OUT The dynamic range of 110 dB typical., DA converter, 107 dB typical., INPUT to OMNI OUT, Input gain = min. Hum and noise level Equivalent input noise -128 dBu typ., Input gain = Max. (Measured with an A-Weighted filter) Residual output noise -85 dBu, ST master out (measured with an A-Weighted filter) Crosstalk -100 dB (measured with a -30 dB/octave filter at 22 kHz), / OMNI OUT adjacent input channels, Input Gain = Min. Power Requirements 100-240 V 50/60 Hz Power Consumption 120 W Dimensions W 866 mm (34.1in) H 225 mm (8.9in) D 599 mm (23.6in) Net Weight 20.0 kg (44.1lb)

TF5 48 input mix channels (40 mono + 2 stereo + 2 return) 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses 8 DCA groups with Waiting Rooms 34 x 34 channels of digital recording / playback via USB 2.0 + 2 x 2 via a USB storage device 1 expansion slot for NY64 - D audio interface card

All in one system

TF can be used to mix large bands, as it has 32-channel inputs. Additionally, it has 16-channel outputs that can be used for 14 two-channel monitor outputs for the main output. One TF can control both the mix and monitor stage. The MonitorMix app for iPhone allows onstage players to control their monitor level themselves, increasing the flexibility and efficiency that many players are involved in.
